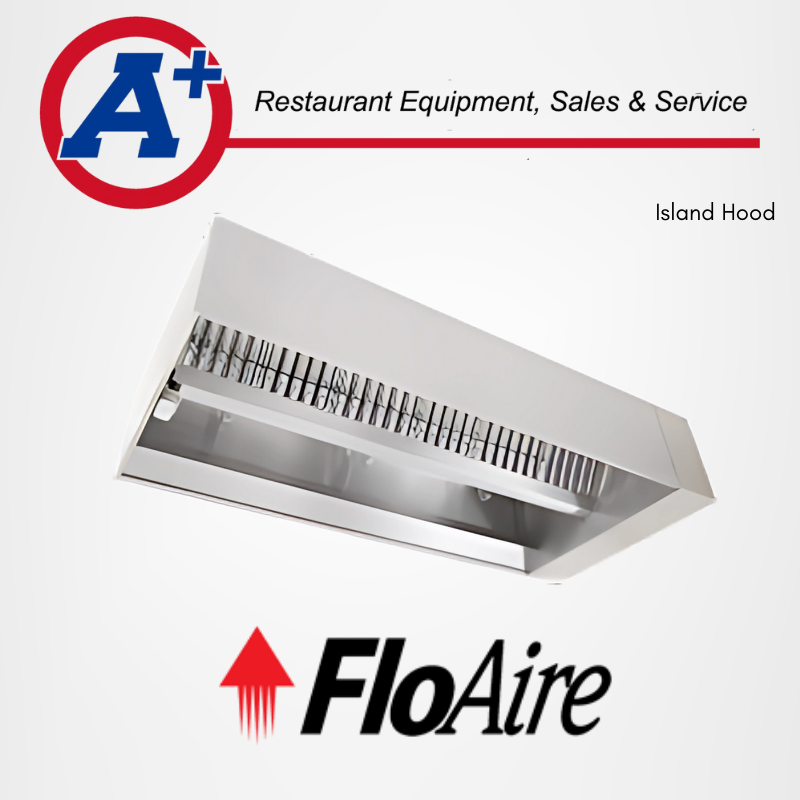

Low exhaust flow rates make for superior efficiency! This Type I hood can meet the challenges of any island-style cooking application.
It's a One Piece V-Bank island hood.
Fabricated of Type 430 stainless steel, #3 or #4 polish, on all exposed surfaces. Optional type 304 stainless steel available.
Double-wall, insulated front increases rigidity.
The front design prohibits condensation and directs grease-laden vapors toward the exhaust filter bank. Polished stainless steel on the interior and exterior of the front enhances aesthetics.
Fitted with UL-classified stainless steel baffle filters that are removable for cleaning. Optional Captrate Combo®, Captrate Solo®, high-efficiency stainless steel baffle, aluminum baffle, and high-velocity cartridge filters (Model FX-CNDI) are available.
Sloped grease drain system with removable 1/2 pint cup for easy cleaning.
There are pre-punched hanging angles on each end of the hood. An additional set is provided for hoods longer than 12'.
Fitted with UL-listed, pre-wired, incandescent light fixtures and tempered glass globes to hold up to a standard 100-watt bulb.
A built-in wiring chase allows for the optimal positioning of electrical controls and outlets on the front face of the hood without penetrating the capture area or requiring an external chase way.
Optional integral 3" air space to meet NFPA 96 requirements when the hood is against a limited combustible wall. Optional insulated 3" air space for combustible walls.
Optional ETL Listed exhaust fire damper (Model FX-NDI-100).
Model FX-NDI is ETL Listed for 400°F, 600°F, and 700°F cooking surfaces (File 102900319PRT-001 without exhaust damper; File 3054804-002 with exhaust damper), ETL Sanitation Listed, and built following NFPA Standard 96.
