FloAire SFK-2 Series Hood

SFX-2 Series

Exhaust Only Hood for Low Ceiling Heights

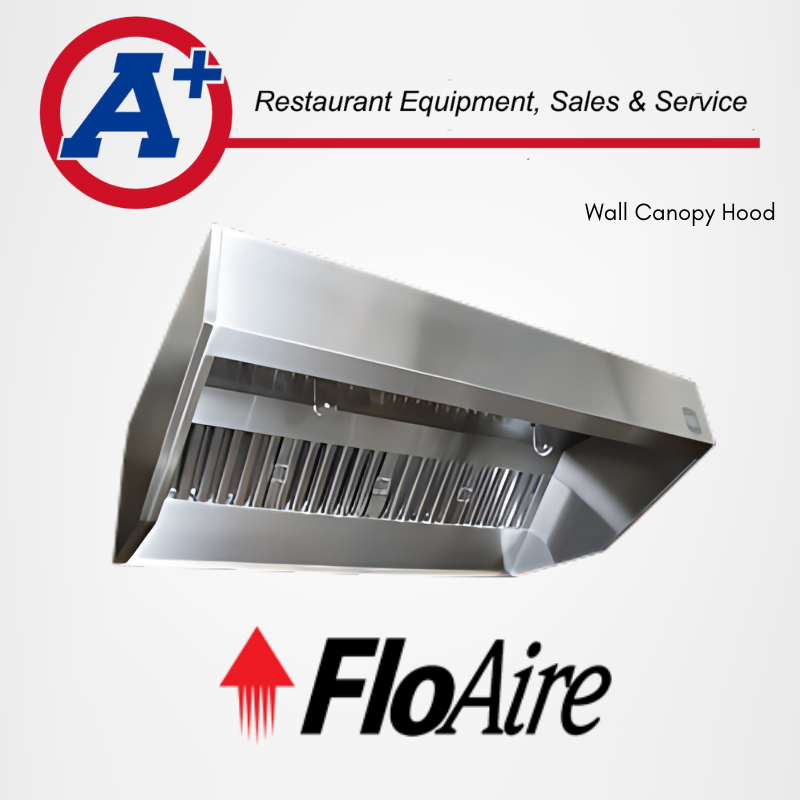

The SFX-2 model is the sloped-front version of FloAire's flagship FX-2 hood. This wall canopy, Type I, exhaust-only unit operates at low CFM and is the hood of choice for low-ceiling applications. It is ETL listed for use over 400°F and 600°F cooking surface temperatures.

• Exhaust Flow Rates: Superior exhaust flow rates (A 4' Hood can operate at 228 CFM/ft or 912 total CFM.)
• ETL Listed: ETL is listed for over 400°F and 600°F cooking surface temperatures, providing flexibility in kitchen ventilation systems. ETL was listed according to Canadian safety standards, and ETL sanitation was listed and built following NFPA 96.
• Sloped front: for low ceiling applications.
• Capture and Containment: The insulated, double-wall rigid front has an aerodynamic design that reduces radiant heat entering the kitchen, prevents condensation, and provides exceptional capture and containment of cooking vapors.
• Stainless Steel Construction: Polished stainless steel on the interior and exterior of the front enhances aesthetics. The front corners are fully welded and polished.
• Reduced Weight: Rigid single-wall end panels minimize weight.
• Convenient Design: Factory-pre-wired lighting illuminates the cooking surface, which is accessible from the bottom of the hood. Hanging angles are easily accessible. The hood will accommodate 16-inch round exhaust risers.
• Channels: The Hood comes standard with structural channels on top and wrapper channels on the bottom.
• Grease Extraction: All hoods come standard with stainless steel baffle filters and a grease trough, allowing easy cleaning. Captrate Combo® and Captrate Solo® filters are optional.
• Clearance to Combustibles: Standard built-in 3" rear standoff to meet NFPA 96 requirements.
• Controls: Hoods can be equipped with modular utility cabinets and end standoffs. Optional UL-listed light and fan control switches are flush-mounted and pre-wired through an electrical conduit.
• Optional Make-Up Air: Make-up air can be supplied through an optional front and side plenums (SFX-2 Series with PSP Accessory)

• Available in single-wall type or two-piece back-to-back configuration.
• Fabricated of Type 430 stainless steel, #3 or #4 polish, on all exposed surfaces. Optional type 304 stainless steel available.
• A double-wall, insulated front increases rigidity and reduces condensation.
• Fitted with UL-classified, high-efficiency stainless steel baffle filters that are removable for cleaning. Optional Captrate Combo®, Captrate Solo®, stainless steel baffle, and high-velocity cartridge filters (Model FX-CSND-2) are available.
• Grease drain system with removable 1/2 pint cup for easy cleaning.
• There are pre-punched hanging angles on each end of the hood. An additional set is provided for hoods longer than 12'.
• Optional integral clearance to combustibles reduction system to meet NFPA 96 requirements.
• Fitted with UL-listed, pre-wired, incandescent light fixtures and tempered glass globes to hold up to a standard 100-watt bulb.
• A built-in wiring chase allows for the optimal positioning of electrical controls and outlets on the front face of the hood without penetrating the capture area or requiring an external chase way.
• The SFX-2 model is ETL Listed for 400°F and 600°F cooking surfaces (File 102900319PRT-001 without exhaust damper), ETL Sanitation Listed, and built following NFPA Standard 96.
